Keychron V5 Max Wireless Custom Keyboard

The Keychron V5 Max Wireless Custom Keyboard  offers an 1800 compact layout, providing a full set of keys, including a numpad, in a space-efficient design. It features both 2.4 GHz wireless connectivity with a 1000 Hz polling rate and Bluetooth 5.1, allowing seamless multitasking across multiple devices. The gasket mount design, combined with sound-absorbing foam, ensures a comfortable and quiet typing experience.

Double-shot PBT keycaps provide durability and a premium feel. With QMK/VIA support, users can fully customize key functions and macros to suit their preferences. Hot-swappable sockets enable easy switch customization without soldering, and south-facing RGB LEDs offer vibrant backlighting. The V5 Max is compatible with both Mac and Windows systems, featuring a system toggle and additional keycaps for each. Exclusive Gateron Jupiter mechanical switches in the fully assembled version offer a lifespan of up to 80 million keystrokes, ensuring long-lasting performance.

• Customisable keyboard
• 2.4GHz & Bluetooth connection
• ARM architecture MCU with 256K flash.
• OSA profile double-shot PBT keycaps
• Gasket mount design with PC plate

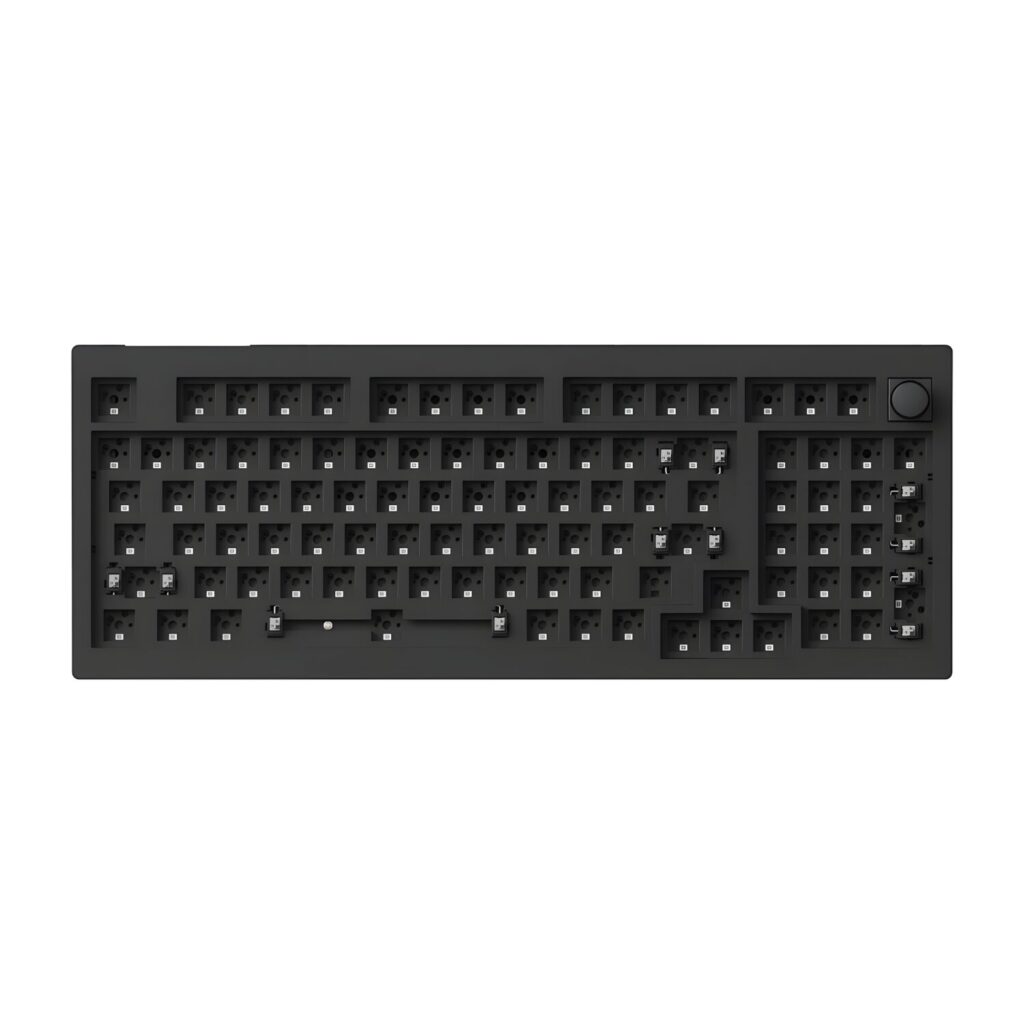

• Hot-swappable
• South-facing RGB LED lights
• Gateron Jupiter switch
• Screw-in PCB stabilisers

• Colour: Black
• Material: ABS Plastic
• Plate Material: PC
• Mount Style: Gasket Mount Design
• Battery: 4000 mah rechargeable li-polymer battery
• Charging Time: ± 5 hours
• Bluetooth Version: 5.1
• Compatible System: Windows/macOS/Linux
• N-Key Rollover (NKRO): Yes for both wireless and wired modes
• Hot-swappable: Yes.
• MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
• Switches: Gateron Jupiter (Fully Assembled Version)
• Backlight: South-facing RGB LED
• Stabiliser: Screw-in PCB stabs

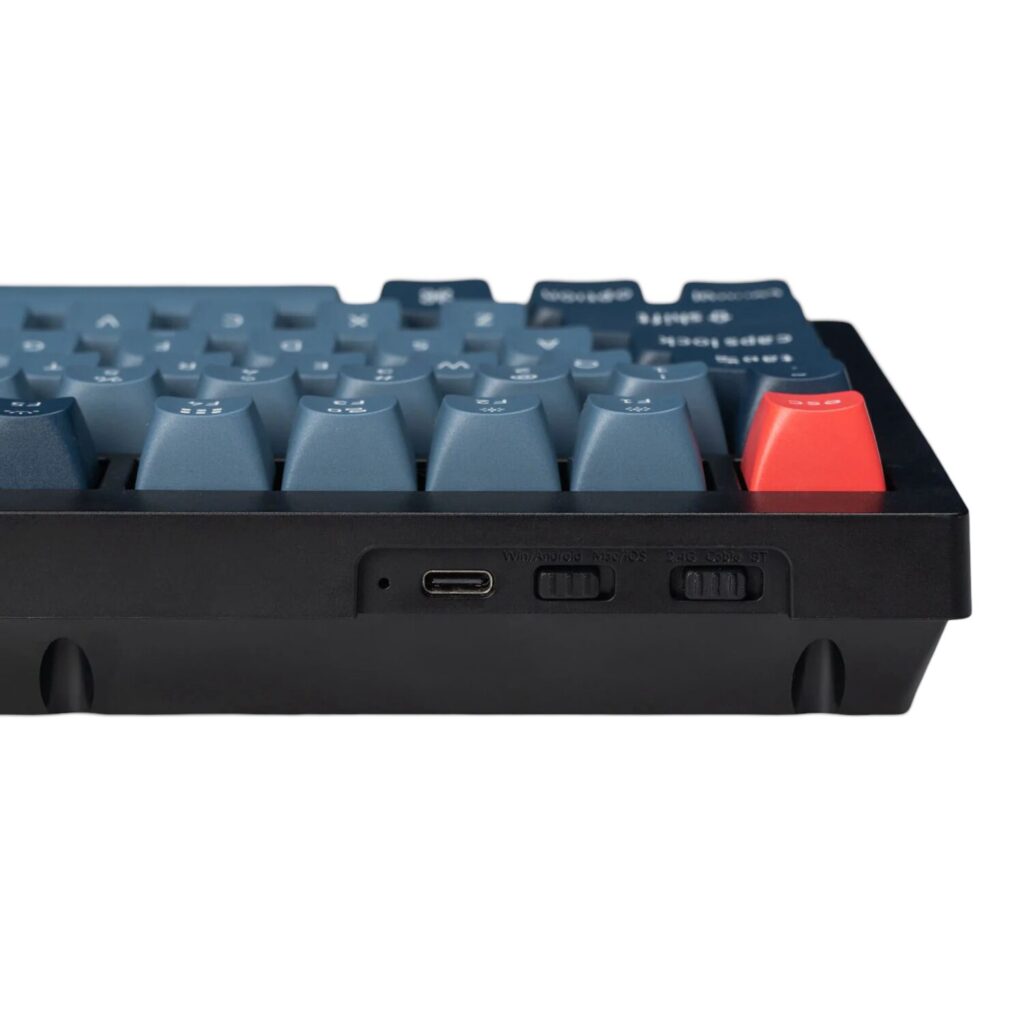

• Charging Port: USB Type-C
• Cable: Type-C cable + Type-A to Type-C adapter
• Operating Environment: -10℃ to 50℃
• Gateron Jupiter Switch:
  • Operating force: 59 ± 10 gf
  • Pre-travel:2 ± 0.6 mm
  • Travel distance: 3.4mm max.
  • Behaviour: Tactile (Similar to Panda Switches)
  • Pre-lubed: Yes
  • Sound level: Gentle
  • Suitable for: Office/Gaming
